For assembling of the shaft retainers, retainers, axial shaft retainers, mbo Osswald has assembly tools in the standard product range. This assembly tool is used for spring washers with cap.

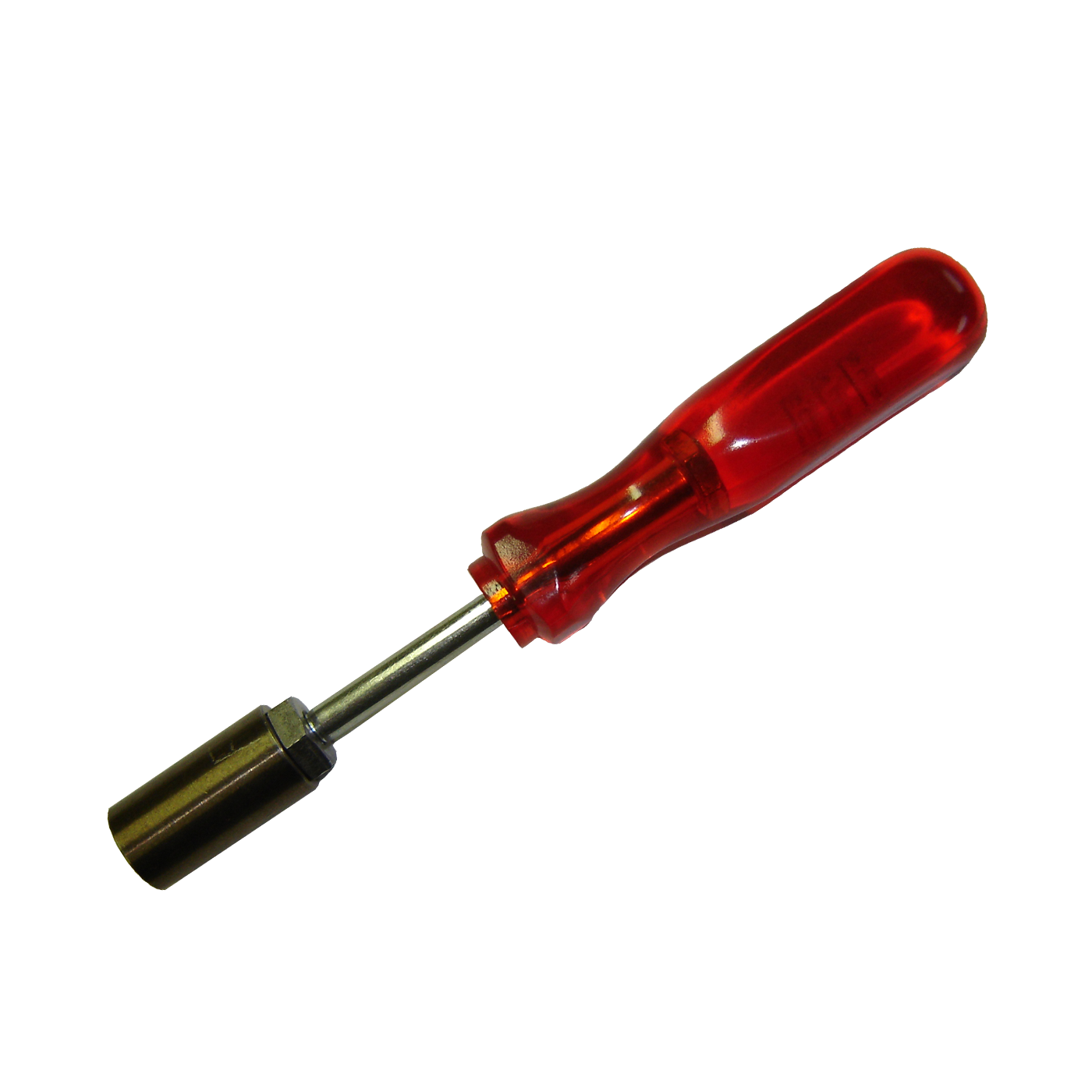

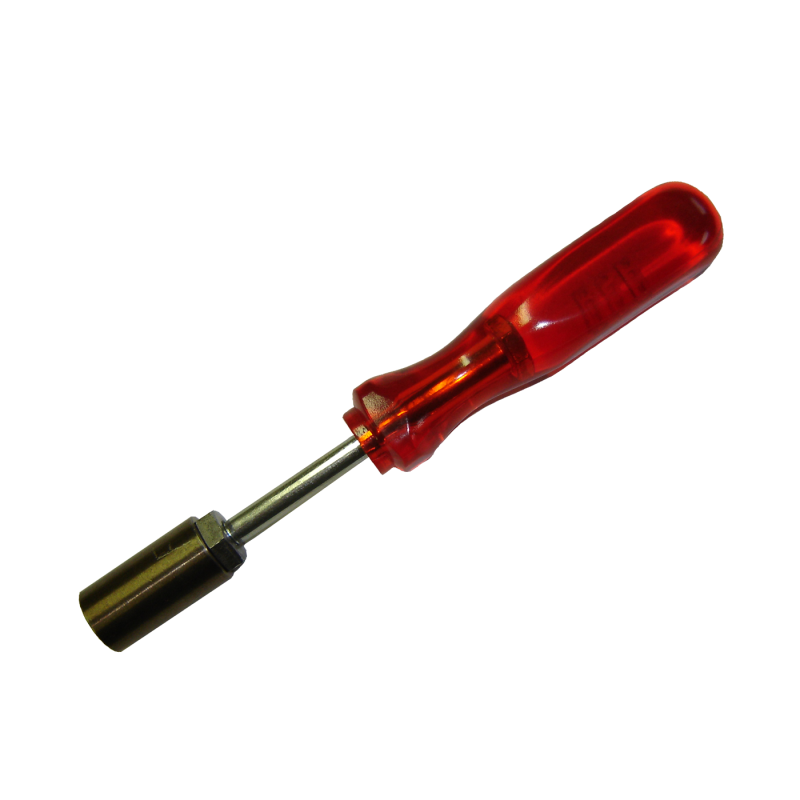

Assembly tools for spring washers with cap

14 个评论 since 27.03.2026

Delay under control: Tools for spring washers with cap ensure reproducible application, protect the cap, and improve the appearance in visible areas. Ideal for concealed securing applications where component protection and process reliability are the top priorities.

立即询问
您的联系人：Daniel Fleuchaus +49 9345/670-143

Assembly tools for spring washers with cap - Dimensional drawing

欲查找所需货品，您可任选不同筛选标准，或在表格顶部搜索文本或文本和货号。
欲再次取消筛选器设置，请单击表格下方的“清空”按钮。
欲显示产品详细信息和 3D 模型，可单击与所需货品对应的行。

- assembly of the spring washer with cap is possible with and without tool
- an assembly tool is used for quicker assembly, situations of difficult access, and assembly facilitation for applying the required force
- the assembly tool has a magnet holding the spring washer. Tip: put the spring washer with cap into the recess
- assembly is carried out in the axial direction to the shaft
- during disassembly the retainer will be damaged to the end that the same retainer can no longer be used
