For assembling of the shaft retainers, retainers, axial shaft retainers, mbo Osswald has assembly tools in the standard product range. This assembly tool is used for spring washers without cap.

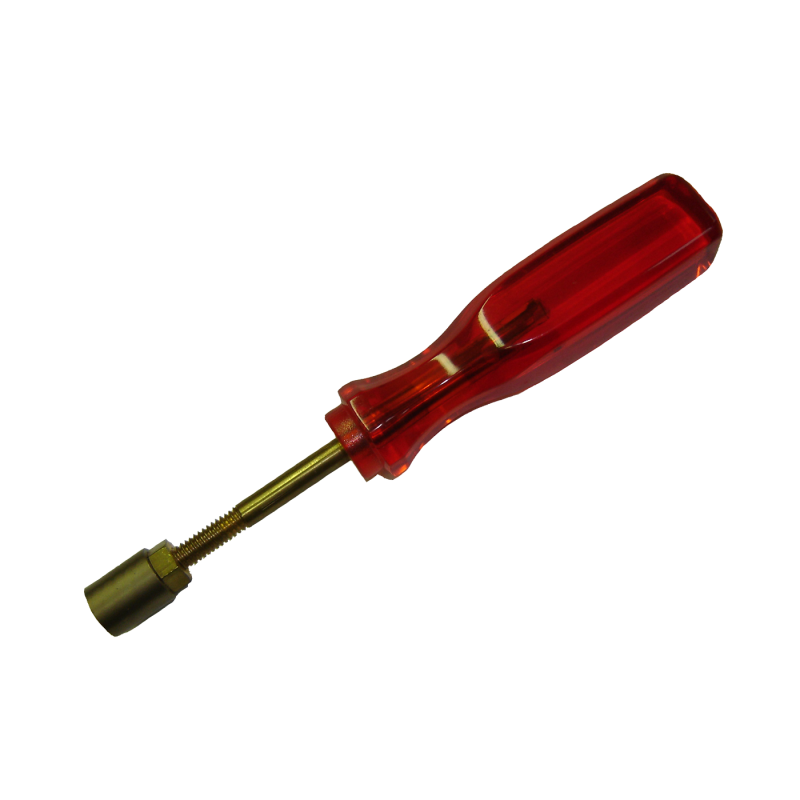

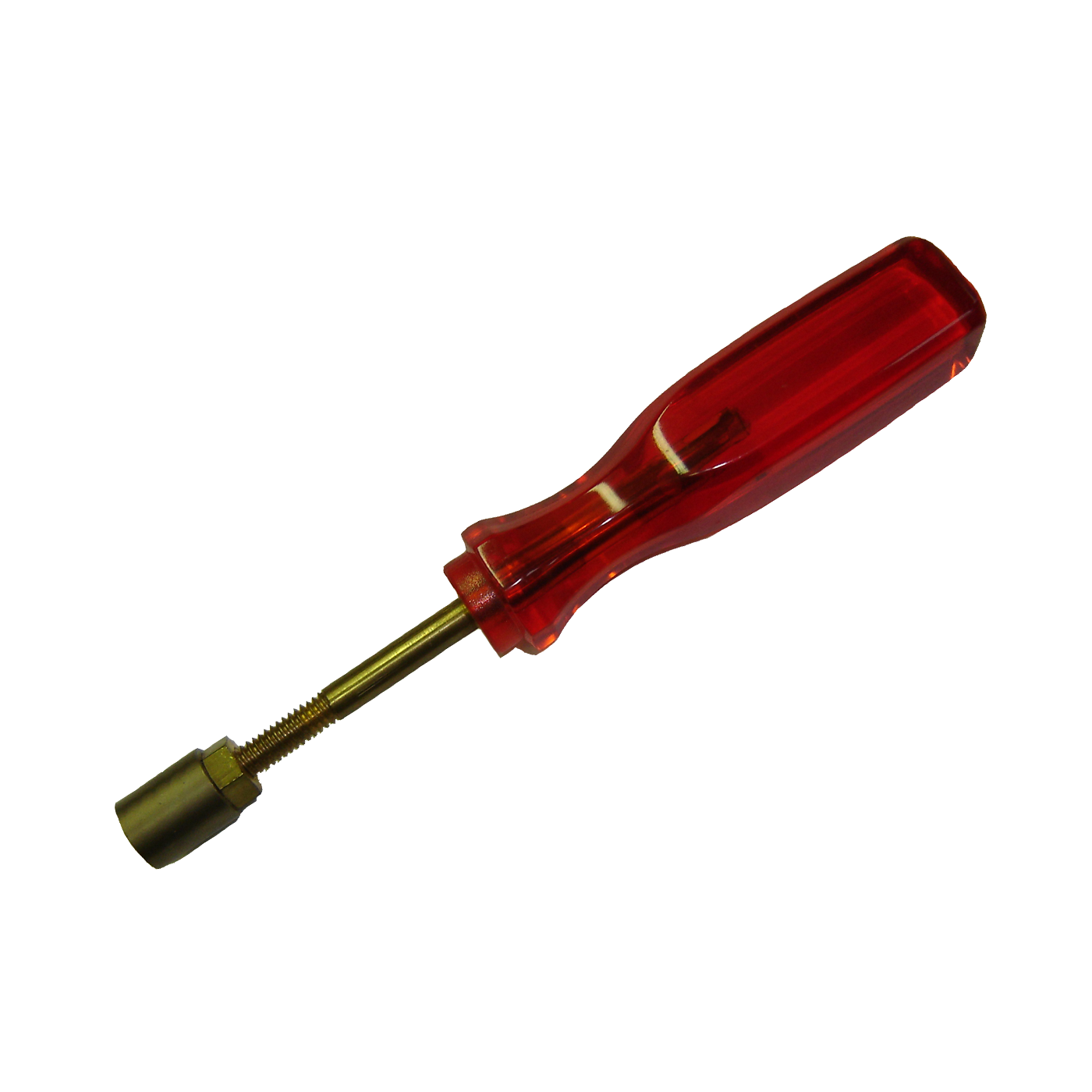

Assembly tools for spring washers

17 个评论 since 25.04.2026

Fast, safe, and component-friendly: Special push-on/assembly tools for push-on spring washers speed up series assembly on smooth shafts without grooves. They reduce slips, damage, and rejects – for repeatable insertion depth and stable holding force.

立即询问
您的联系人：Daniel Fleuchaus +49 9345/670-143

Assembly tools for spring washers - Dimensional drawing

欲查找所需货品，您可任选不同筛选标准，或在表格顶部搜索文本或文本和货号。
欲再次取消筛选器设置，请单击表格下方的“清空”按钮。
欲显示产品详细信息和 3D 模型，可单击与所需货品对应的行。

- assembly of the spring washer is possible with and without tool
- an assembly tool is used for quicker assembly, situations of difficult access, and assembly facilitation for applying the required force
- the assembly tool has a magnet holding the spring washer. Tip: put the spring washer onto the magnet, with the edge facing upward
- assembly is carried out in the axial direction to the shaft
- during disassembly the end of the retainer will be damaged to the end and the same retainer can no longer be used
