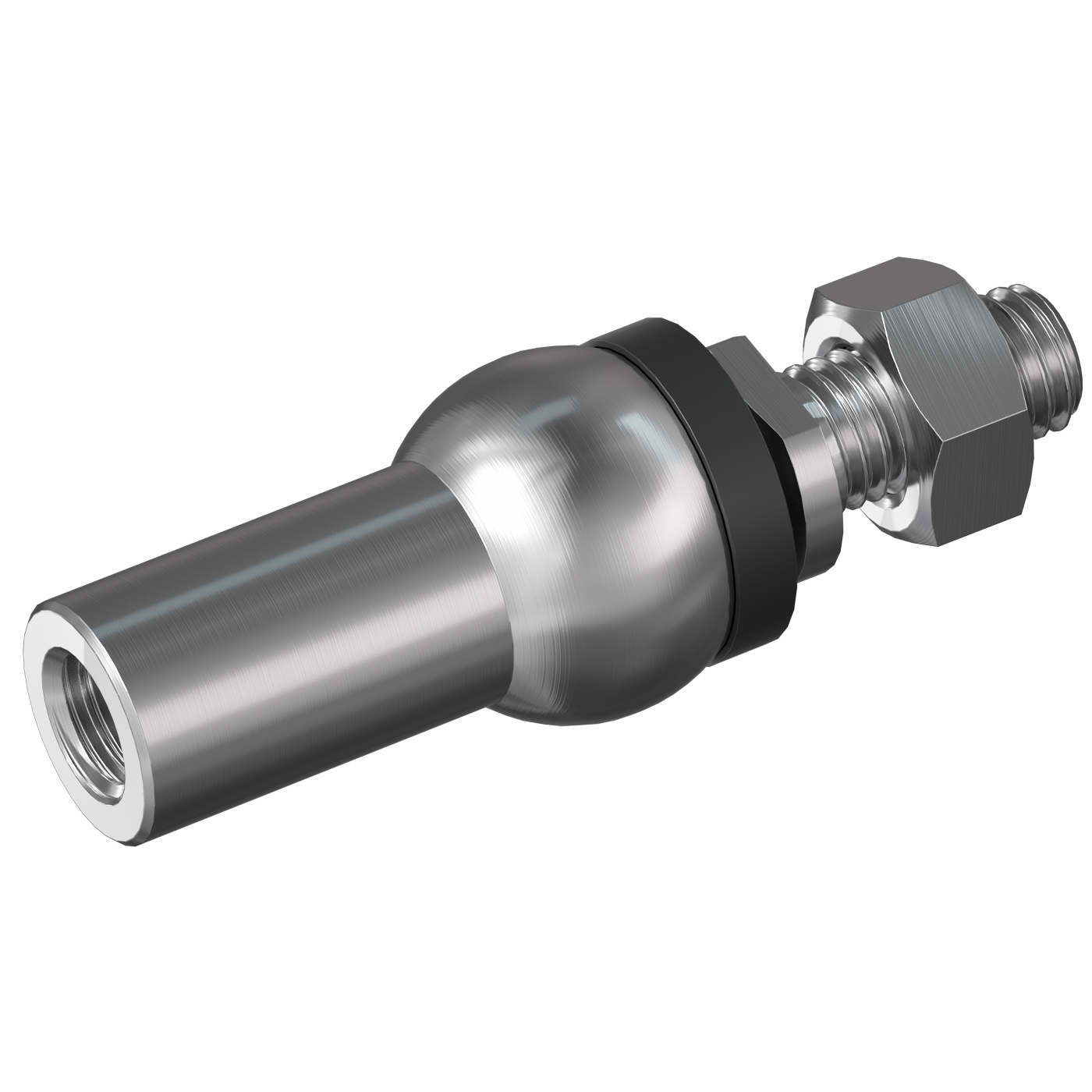

Axial joint similar to DIN 71802 with sealing cap 13 M8 Stainless steel A4 quality
hexagonal nut is supplied loose
* code for thread: regular thread = no code, regular thread left-handed (only in the ball socket) = LH, fine-pitch thread = FG
axial joints for higher forces on request
* code for thread: regular thread = no code, regular thread left-handed (only in the ball socket) = LH, fine-pitch thread = FG
axial joints for higher forces on request
货号
10 45 4413 8002/4404
标识符
Axial joint similar to DIN 71802 removable with sealing cap
Größe
13 M8
材料组
不锈钢 A4 质量
表面
明亮
d1
13
d1 Tolerance²
H9/h9
d2*
M8 x 1,25
???
常规右螺纹
d3
13
la
29,5
l3 ±0,3
13
a ±0,3
30
e min.
14
Extraction force according to DIN 71805 F in N min.
60
sw
11
Mass (kg) per piece
0,053
材料
Stainless steel 1.4404 (X2CrNiMo17-12-2)
Snap ring: stainless steel
Sealing cap: chloroprene (CR), must be usable in temperatures ranging from -30 °C to +110 °C (for short periods up to +140 °C)
