mbo Osswald has ball joints, angle joints with ball socket with slit, angle joint with ball socket with slit in the product range of angle joints, too. These are available in a steel-version.

角接头，带开口球座

1 个评论 since 21.06.2021

Quick clip-on, secure hold: The slotted ball socket enables clipping on and off the ball stud with minimal tools – perfect for service, adjustment and frequent disconnection. A defined snap force ensures reliable guidance; the securing clip increases pull-out resistance. Ideal for setup/changeover processes and modular assemblies.

描述

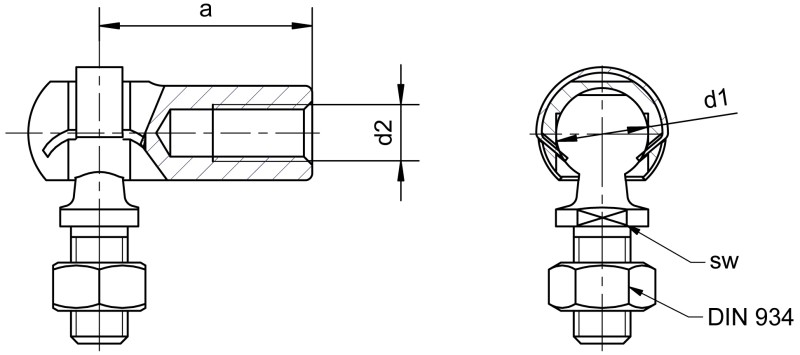

Angle joint with ball socket with slit

Angle joints with ball socket with slit are assembled from a ball socket with slit, a ball stud and a safety clip. In this case, the ball socket with slit is not equipped with the snap ring and circlip. These are replaced by a safety clip which passes through the slots in the ball socket to retain and secure the ball stud. It is fast and easy to assemble and the ball stud can also be removed without difficulty.

立即询问
您的联系人：Daniel Fleuchaus +49 9345/670-143

欲查找所需货品，您可任选不同筛选标准，或在表格顶部搜索文本或文本和货号。
欲再次取消筛选器设置，请单击表格下方的“清空”按钮。
欲显示产品详细信息和 3D 模型，可单击与所需货品对应的行。
