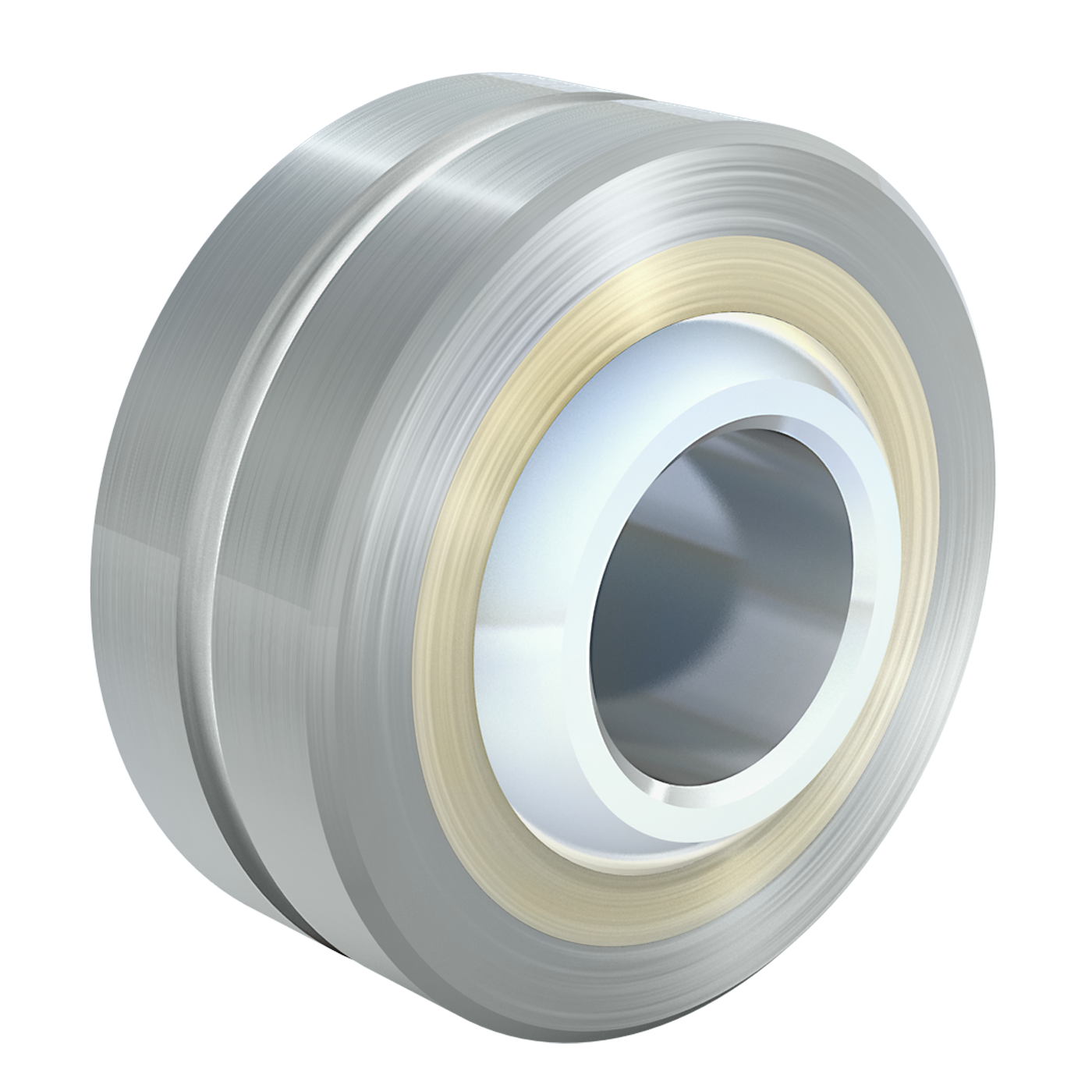

Pivoting bearing DIN ISO 12240-1 K series high performance version 14 Steel galvanised
can be regreased, suitable for higher rotation speeds
* only recommended for short-term running
1 one-piece outer ring made of CuSn8
Recommended fits for housing bores for installing pivoting bearings:
load normal - for steel housing J7/H7, for light-alloy housing K7
load high - for steel housing K7, for light-alloy housing M7
1 one-piece outer ring made of CuSn8
Recommended fits for housing bores for installing pivoting bearings:
load normal - for steel housing J7/H7, for light-alloy housing K7
load high - for steel housing K7, for light-alloy housing M7
货号
10 71 0000 0014/013
标识符
Pivoting bearing DIN ISO 12240-1 (DIN 648) K series high performance version
Größe
14
材料组
Steel
表面
galvanised
材料
Outer ring: undercut steel 1.0718 (11SMnPb30+C), lathe work, galvanised
Bearing shell: special bronze CuSn8
Internal ring: ball bearing steel 1.3505 (100Cr6), hardened, grinded, polished
d
14
d Tolerance
H7
A
13,5
B
19
d1
16,8
d2
34
d2 Tolerance
h6
Static basic load rating C0 (kN)
102,5
Permissible rpm*
750
Angle of misalignment a°
16
Bearing radial tolerance in mm min. - max.
0,005 - 0,050
Mass (g) per piece
83
润滑
regular lubrication required using non-soap high-temperature grease with a high drop point to ensure consistent lubrication at high operating temperatures; working range: -50 °C to +250 °C; initial lubrication must be performed during initial operation
Rod end_Pivoting bearing
Pivoting bearing
Series
K series
Maintenance
needs maintenance
Threaded bolt
No
Sealing
No
Suitable for clevises
No
