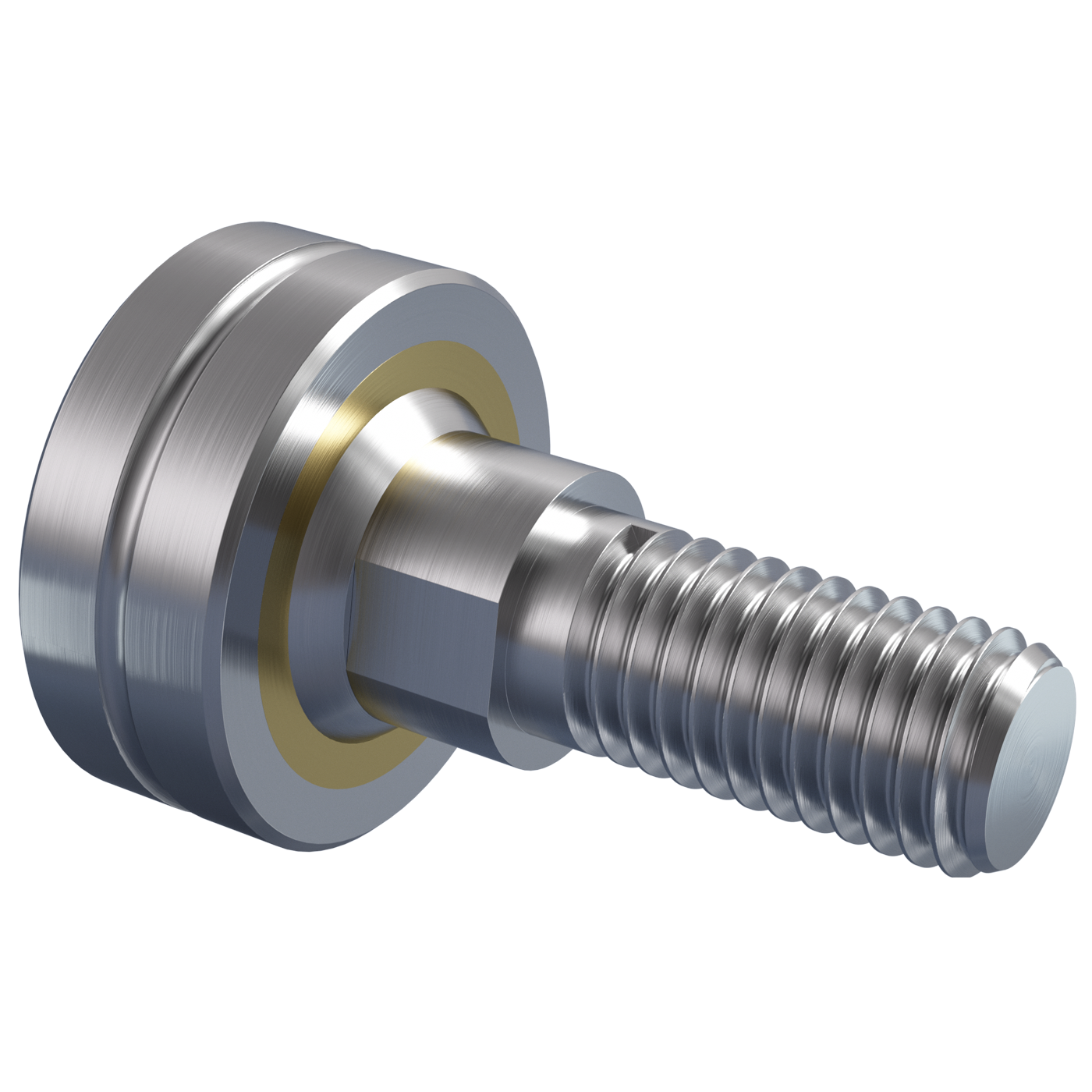

Pivoting bearing DIN ISO 12240-1 K high performance version stainless steel with threaded bolt 10
can be regreased, suitable for higher rotation speeds
* only recommended for short-term running
Recommended fits for housing bores for installing pivoting bearings:
load normal - for steel housing J7/H7, for light-alloy housing K7
load high - for steel housing K7, for light-alloy housing M7
Recommended fits for housing bores for installing pivoting bearings:
load normal - for steel housing J7/H7, for light-alloy housing K7
load high - for steel housing K7, for light-alloy housing M7
货号
10 72 6482 0010/000
标识符
Pivoting bearing DIN ISO 12240-1 (DIN 648) K series high performance version stainless steel with threaded bolt
Größe
10
材料组
Stainless steel
表面
bright
材料
Outer ring: stainless steel 1.4305 (X8CrNiS18-9), lathe work
Bearing shell: special bronze CuSn8
Internal ring: ball bearing steel 1.3505 (100Cr6), hardened, grinded, polished, hard chrome-plated on the bearing surface, alternative: stainless steel 1.4034 (X46Cr13), hardened, grinded, polished
Threaded bolt: stainless steel 1.4305 (X8CrNiS18-9)
12
d Tolerance
H7
d2 Tolerance
h6
螺纹版
Regular thread right
Static basic load rating C0 (kN)
60
Permissible rpm*
1000
Angle of misalignment a°
13
Bearing radial tolerance in mm min. - max.
0,005 - 0,040
Mass (g) per piece
63
润滑
regular lubrication required using non-soap high-temperature grease with a high drop point to ensure consistent lubrication at high operating temperatures; working range: -50 °C to +250 °C; initial lubrication must be performed during initial operation
Rod end_Pivoting bearing
Pivoting bearing
Series
K series
Maintenance
needs maintenance
Threaded bolt
Yes
Sealing
No
Suitable for clevises
No
