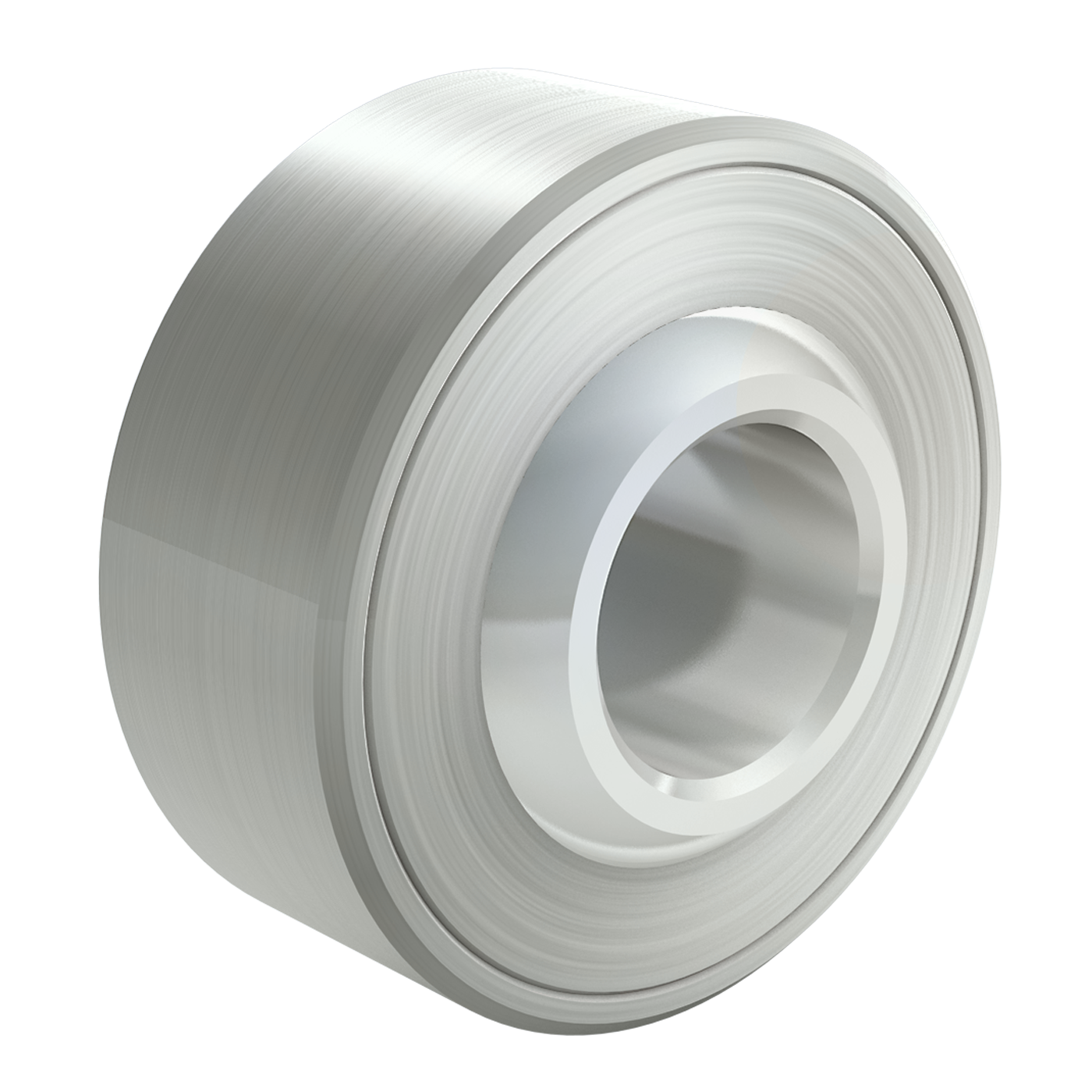

Pivoting bearing DIN ISO 12240-1 K series maintenance-free 20 Steel galvanised
suitable for high dynamic pressure loads and tensile forces
* only recommended for short-term running
1 one-piece outer ring made of 45S20
Recommended fits for housing bores for installing pivoting bearings:
load normal - for steel housing K7, for light-alloy housing M7
load high - for steel housing M7, for light-alloy housing N7
1 one-piece outer ring made of 45S20
Recommended fits for housing bores for installing pivoting bearings:
load normal - for steel housing K7, for light-alloy housing M7
load high - for steel housing M7, for light-alloy housing N7
货号
10 73 0000 0020/013
标识符
Pivoting bearing DIN ISO 12240-1 (DIN 648) K series maintenance-free version
Größe
20
材料组
Steel
表面
galvanised
材料
Outer ring: undercut steel 1.0718 (11SMnPb30+C), lathe work, galvanised
Bearing shell: undercut steel 1.0718 (11SMnPb30+C), galvanised, with glued-in PTFE fabric
Internal ring: ball bearing steel 1.3505 (100Cr6), hardened, grinded, polished
46
d Tolerance
H7
d2 Tolerance
h6
Static basic load rating C0 (kN)
130
Permissible rpm*
190
Angle of misalignment a°
14
Bearing radial tolerance in mm min. - max.
0,005 - 0,050
Mass (g) per piece
200
润滑
no lubrication required; the ball slides on the PTFE fabric located in the bearing shell; working range: -150 °C to +250 °C
Rod end_Pivoting bearing
Pivoting bearing
Series
K series
Maintenance
maintenance-free
Threaded bolt
No
Sealing
No
Suitable for clevises
No
