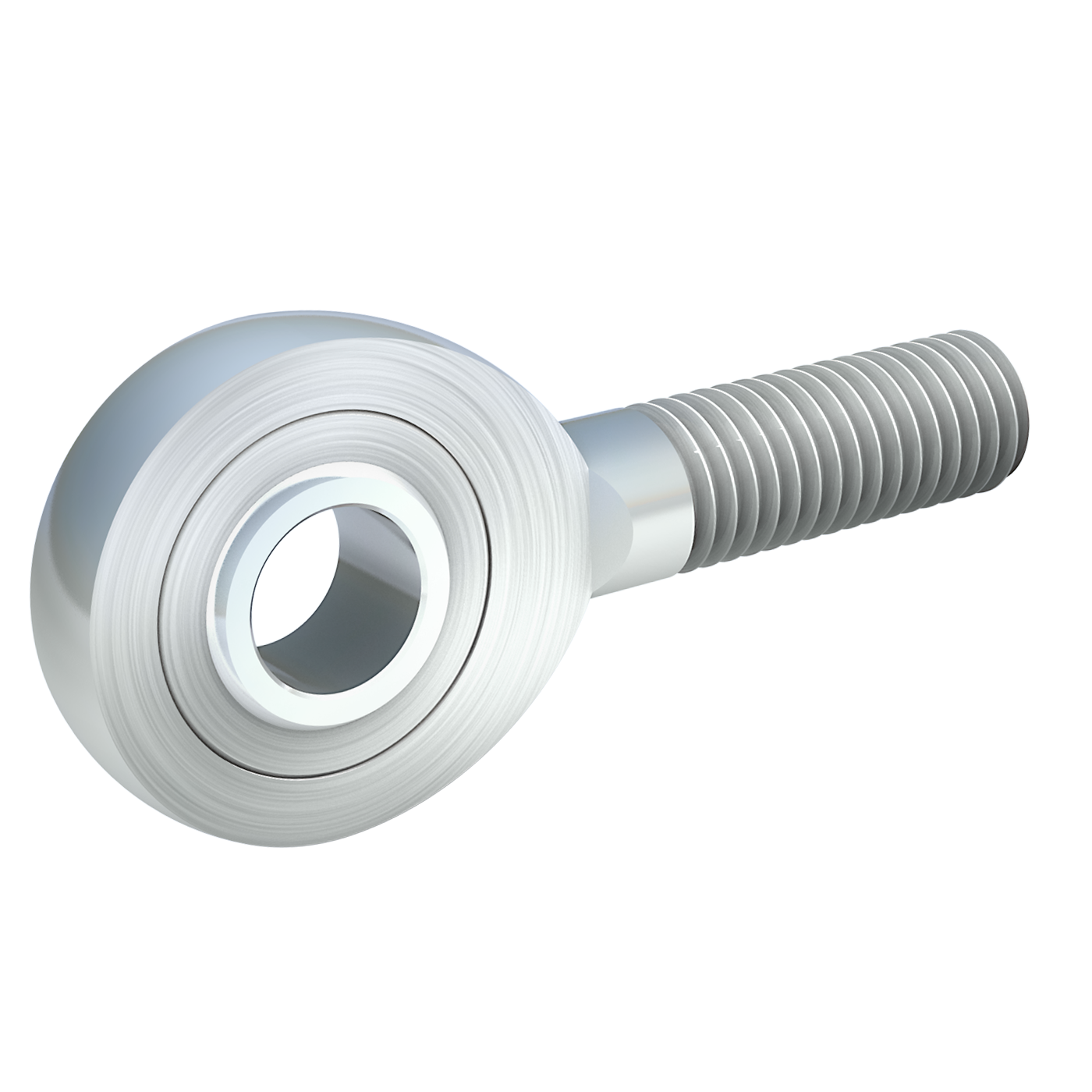

Rod end DIN ISO 12240-4 E series maintenance-free stainless steel male thread 16 M16
suitable for high unidirectional loads货号
10 84 6481 2016/000
标识符
Rod end DIN ISO 12240-4 (DIN 648) E series maintenance-free version stainless steel male thread
Größe
16 M16
材料组
Stainless steel
表面
bright
材料
Housing: size 6-40 stainless steel 1.4301 (X5CrNi18-10), forged, polished
from size 45 stainless steel 1.4301 (X5CrNi18-10), lathe work
from size 50 stainless steel 1.4571 (X6CrNiMoTi17-12-2), lathe work
Bearing: maintenance-free pivoting bearing (mbo standard 93) made of stainless steel
d
16
d Tolerance
0/ - 8μ
A
11
B
14
d1
20,7
d2
46
d3
M16 x 2
螺纹版
Regular thread right
h
69
l1
36
l2
92
Static basic load rating C0 (kN)
31,5
Angle of misalignment a°
10
Bearing radial tolerance in mm min. - max.
0 - 0,040
Mass (g) per piece
190
润滑
no lubrication required; the ball slides on the PTFE fabric located in the bearing shell; working range: -50 °C to +150 °C
Rod end_Pivoting bearing
Rod end
Series
E series (small version)
Maintenance
maintenance-free
Thread
Male thread
Threaded bolt
No
Sealing
No
Suitable for clevises
Yes
Temperature
-50 °C - +150 °C
