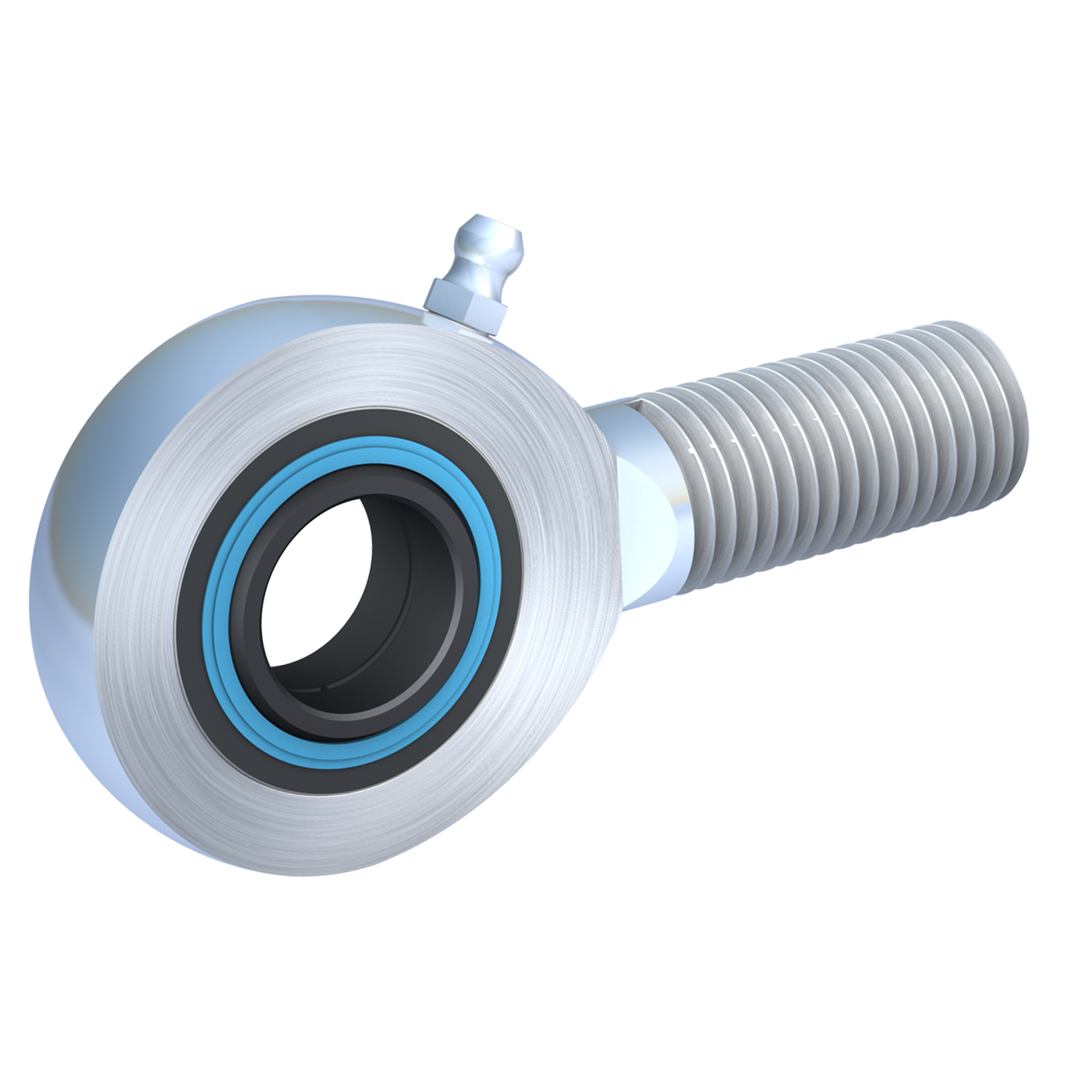

Rod end DIN ISO 12240-4 E series steel/steel version with sealing male thread 17 M16 Steel galv.
can be regreased, suitable for high alternating loads货号
10 83 6481 2017/013
标识符
Rod end DIN ISO 12240-4 (DIN 648) E series steel/steel version with sealing male thread
Größe
17 M16
材料组
Steel
表面
galvanised
材料
Housing: steel, forged, galvanised
Bearing: steel/steel bearing needs maintenance (mbo standard 90)
from size 15 deliverable with double face sealing (mbo standard 83, order number: .. 83 6481 ...)
92
d Tolerance
0/ - 8μ
螺纹版
Regular thread right
Static basic load rating C0 (kN)
54
Angle of misalignment a°
10
Bearing radial tolerance in mm min. - max.
0,020 - 0,065
Mass (g) per piece
190
润滑
from size 20, via hydraulic lubricating nipple DIN 71412; working range: -30 °C to +130 °C; initial lubrication must be performed during initial operation
Rod end_Pivoting bearing
Rod end
Series
E series (small version)
Maintenance
needs maintenance
Thread
Male thread
Threaded bolt
No
Sealing
Yes
Suitable for clevises
Yes
Temperature
-30 °C - +130 °C
