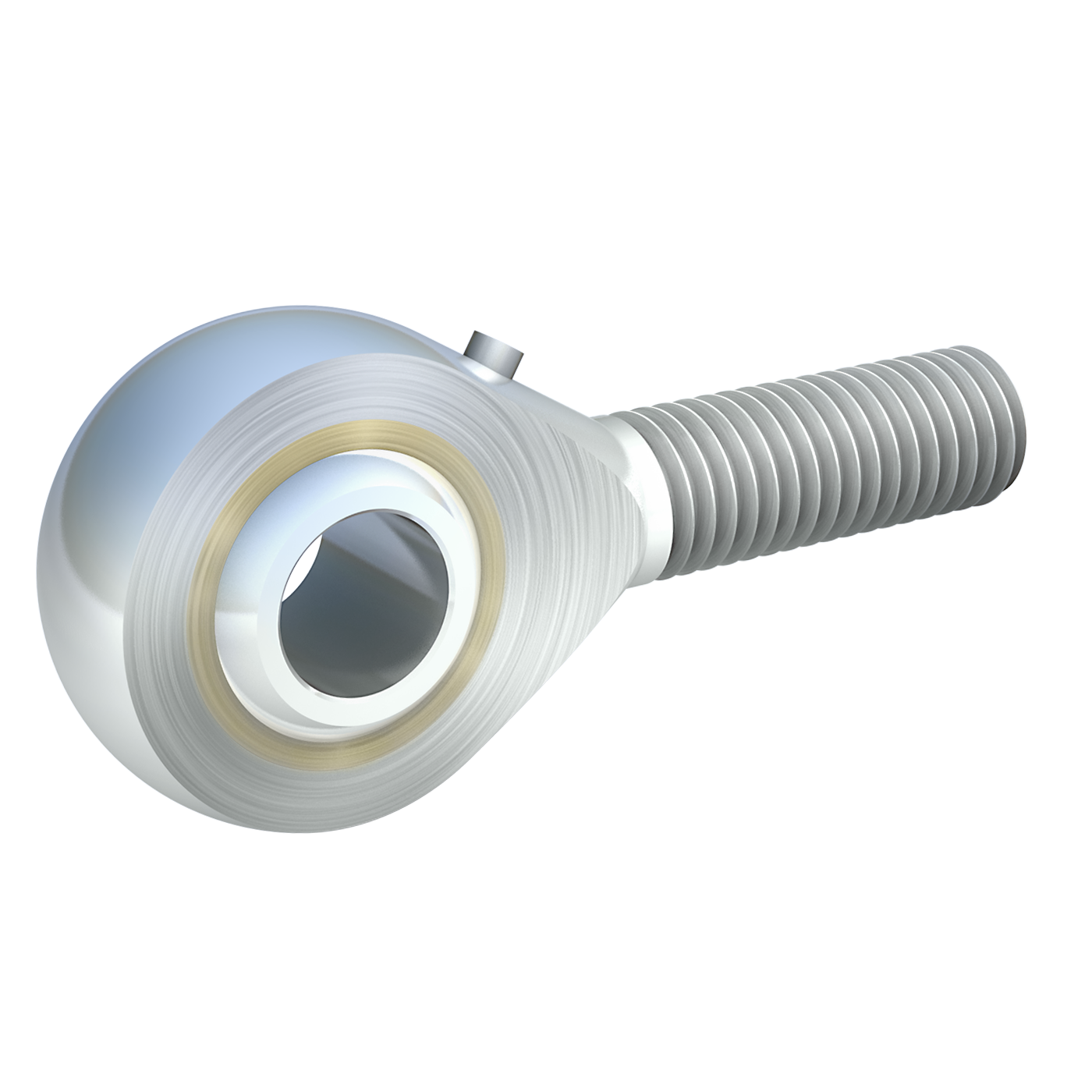

Rod end DIN ISO 12240-4 K series high performance version for high load male thread 22 M22FG Steel
can be regreased, suitable for high pressure loads and tensile forces
* only recommended for short-term running
货号
16 53 6481 2022/013
标识符
Rod end DIN ISO 12240-4 (DIN 648) K series high performance version for high load male thread
Größe
22 M22FG
材料组
Steel
表面
galvanised
材料
Housing: thermal treatment steel 1.7225 (42CrMo4), forged, galvanised
Bearing shell: special bronze CuSn8
Internal ring: ball bearing steel 1.3505 (100Cr6), hardened, grinded, polished, alternative: hard chrome-plated
d
22
d Tolerance
H7
A
20
B
28
d1
25,8
d2
54
d3
M22 x 1,5 FG
螺纹版
Fine-pitch thread right
h
84
l1
51
l2
111
Static basic load rating C0 (kN)
114
Permissible rpm*
500
Angle of misalignment a°
15
Bearing radial tolerance in mm min. - max.
0,010 - 0,050
Mass (g) per piece
443
润滑
via cupped-type lubricating nipple DIN 3405; regular lubrication required using non-soap high-temperature grease with a high drop point to ensure consistent lubrication at high operating temperatures; working range: -50 °C to +250 °C; initial lubrication must be performed during initial operation
Rod end_Pivoting bearing
Rod end
Series
K series
Maintenance
needs maintenance
Thread
Male thread
Threaded bolt
No
Sealing
No
Suitable for clevises
No
Temperature
-50 °C - +250 °C
