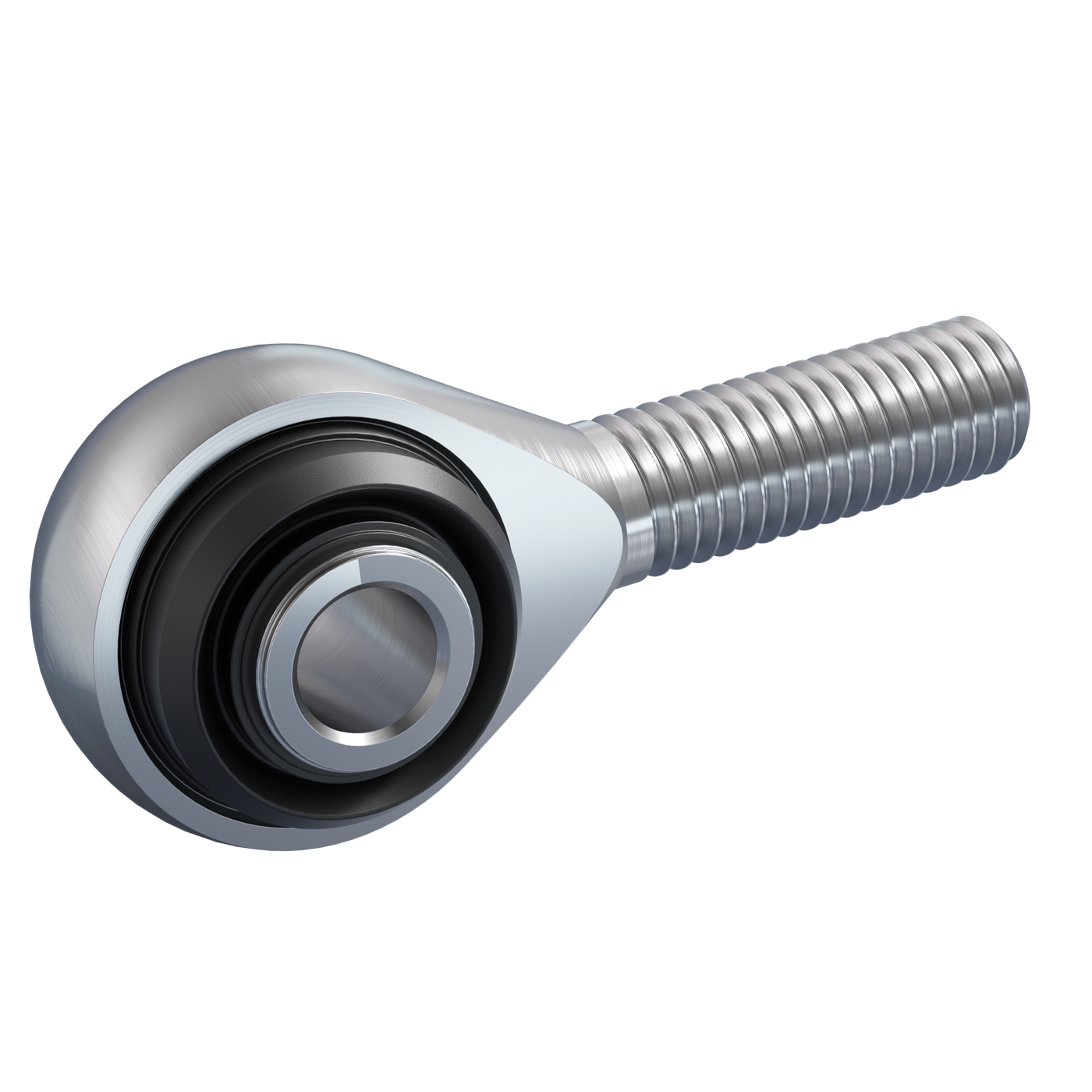

Rod end DIN ISO 12240-4 K series maintenance-free stainless steel with sealing male thread 16 M16
suitable for high dynamic pressure loads and tensile forces
* only recommended for short-term running
Alternatively, there are also neoprene protective rubber caps for rod ends of size 6 to 35.
Alternatively, there are also neoprene protective rubber caps for rod ends of size 6 to 35.
货号
10 56 6483 2016/000
标识符
Rod end DIN ISO 12240-4 (DIN 648) K series maintenance-free version stainless steel with sealing male thread
Größe
16 M16
材料组
Stainless steel
表面
bright
材料
Housing: stainless steel 1.4057 (X17CrNi16-2), forged, polished
Bearing shell: special bronze CuSn8 with glued-in PTFE fabric on the bearing surface, alternative: stainless steel 1.4571 (X6CrNiMoTi17-12-2)
Internal ring: ball bearing steel 1.3505 (100Cr6), hardened, grinded, polished, hard chrome-plated on the bearing surface, alternative: stainless steel 1.4034 (X46Cr13), hardened, grinded, polished or stainless steel 1.4404 (X2CrNiMo17-12-2), unhardened, grinded, polished
Sealing: NBR elastomer, temperature resistance -30 °C to +120 °C, resistant against mineral oils, greases and gasoline
Fitting rings: brass
Distance liner: stainless steel 1.4305 (X8CrNiS18-9)
d
16
d Tolerance
H7
A
15
B
28
B Tolerance
≈
d1
19,3
d2
42
d3
M16 x 2
螺纹版
Regular thread right
d7
14
d8
18,5
d9
32
h
66
l1
40
l2
87
Static basic load rating C0 (kN)
60,5
Permissible rpm*
230
Angle of misalignment a°
12
Bearing radial tolerance in mm min. - max.
0,005 - 0,035
Mass (g) per piece
189
润滑
no lubrication required; the ball slides on the PTFE fabric located in the bearing shell; working range: -50 °C to +150 °C
Rod end_Pivoting bearing
Rod end
Series
K series
Maintenance
maintenance-free
Thread
Male thread
Threaded bolt
No
Sealing
Yes
Suitable for clevises
No
Temperature
-30 °C - +120 °C
