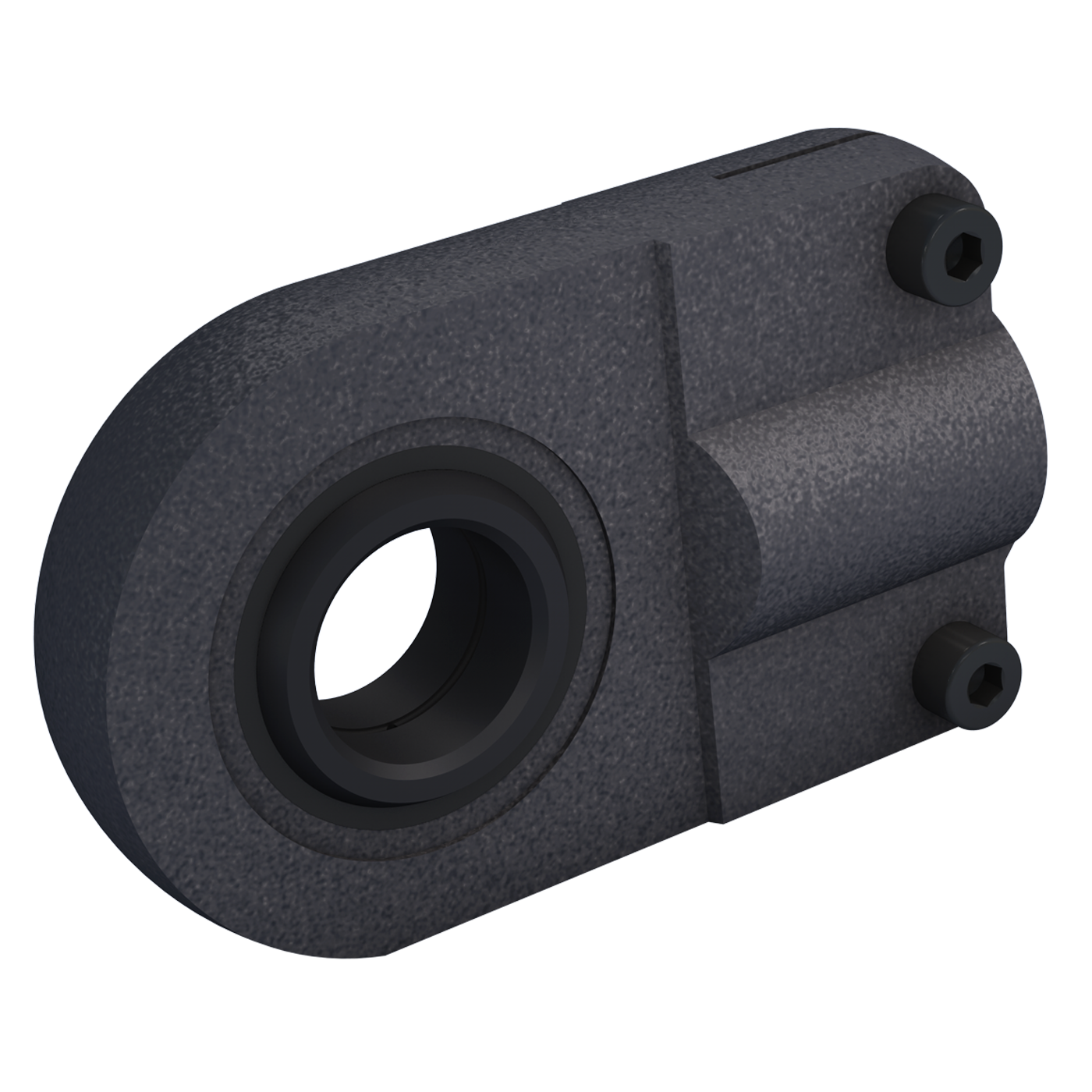

Rod end hydraulic DIN 24555 / ISO 8133 small version 40 M27FG Steel bright
can be regreased, with small bearing, able for standard hydraulic-cylinders pressure 160 bar acc. to ISO 6020/2
1 max. torque of the screw
Attention: size and thread are different; able to jam with screws DIN 912-8.8;
able for standard hydraulic-cylinders pressure 160 bar acc. to ISO 6020/2
Attention: size and thread are different; able to jam with screws DIN 912-8.8;
able for standard hydraulic-cylinders pressure 160 bar acc. to ISO 6020/2
货号
18 95 8133 1027/001
标识符
Rod end hydraulic DIN 24555 / ISO 8133 small version
Größe
40 M27FG
材料组
Steel
表面
bright
材料
Housing: up to size 50 thermal treatment steel 1.0503 (C45), forged
from size 60 spherical cast iron GS400
Bearing: steel/steel pivoting bearing needs maintenance (mbo standard 89)
d
40
A
23
B
28
d2
100
d3
M27 x 2 FG
螺纹版
Fine-pitch thread right
h1
105
l3
37
l4
153
D
90
E
45
F
23
Torque Nm¹
49
Static basic load rating C0 (kN)
156
Dynamic load rating C (kN)
100
Angle of misalignment a°
7
Bearing radial tolerance in mm min. - max.
0,043 - 0,120
Mass (g) per piece
2160
润滑
from size 16-20 lubrication through a hole in the housing; from size 25 with hydraulic lubricating nipple DIN 71412
Rod end_Pivoting bearing
Rod end hydraulic
Series
E series (small version)
Maintenance
needs maintenance
Thread
Female thread
Threaded bolt
No
Sealing
No
Suitable for clevises
No
