Rod ends of the slim E series from mbo Osswald, are according to DIN ISO 12240-4 (DIN 648), too. This rod end with female thread is in steel/steel version and needs maintenance, also it can be regreased.

Rod ends DIN ISO 12240-4 (DIN 648) E series steel/steel version female thread

can be regreased, suitable for high alternating loads

39 个评论 since 22.04.2026

Compact and robust: The E series rod end with steel/steel sliding pair and female thread reduces the interference contour and protects the threaded connection. Designed for confined, force-intensive kinematics, the lubricatable pair offers noticeably higher robustness and load reserves than maintenance-free versions. Ideal when planned lubrication intervals are part of the concept and installation space is limited.

描述

Rod end E series steel/steel version female thread

Static basic load rating C0 (kN)

The static basic load rating C0 (see product details) denotes the value with which a rod end can in normal applications with a static load be stressed in the weakest cross-section without being permanently deformed. It represents the permissible radial bearing strain at rest. The basic load ratings quoted have been calculated using the respective material characteristic values and can be verified by tensile experiments at room temperature. The yield point was used to 80%, making the safety factor until yield start 1.25.

The static basic load rating also enables the permissible thrust load to be calculated:

Fa = Fa perm. = p • C0 (kN)

p = < / ~ 0.1 for rod ends E series steel/steel version

Dynamic basic load ratings for rod ends are available on request.

立即询问
您的联系人：Daniel Fleuchaus +49 9345/670-143

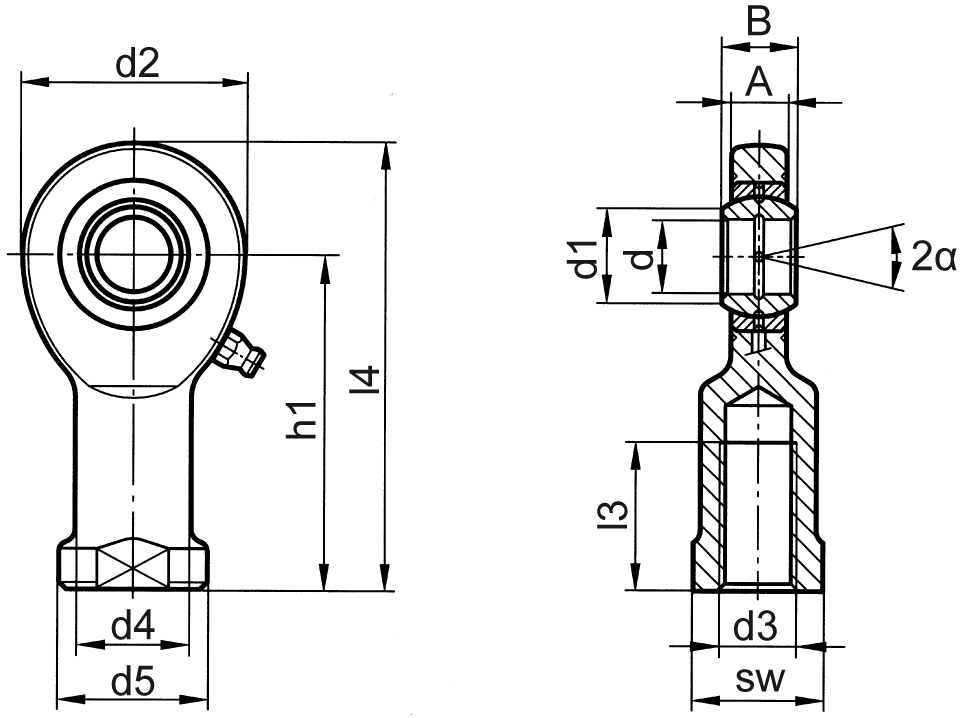

Rod ends DIN ISO 12240-4 (DIN 648) E series steel/steel version female thread - Dimensional drawing
