Rod ends, rod end, DIN ISO 12240-4 (DIN 648) needs maintenance with female thread has mbo Osswald in its standard product range of mechanical linking elements. These are deliverable as high performance version, K series, can be regreased and made of stainless steel.

Rod ends DIN ISO 12240-4 (DIN 648) K series high performance version stainless steel female thread

can be regreased, suitable for higher rotation speeds

37 个评论 since 15.04.2026

Compact, corrosion-resistant, high-load-capable: This stainless steel high-performance version with female thread is suitable for compact, force-transmitting assemblies. Lubricatability ensures durability under load; the female thread reduces the interference contour and makes encapsulation easier – a precise solution for heavy-duty kinematics where space is critical.

描述

Rod end K series high performance version stainless steel female thread

Static basic load rating C0 (kN)

The static basic load rating C0 (see product details) denotes the value with which a rod end can in normal applications with a static load be stressed in the weakest cross-section without being permanently deformed. It represents the permissible radial bearing strain at rest. The basic load ratings quoted have been calculated using the respective material characteristic values and can be verified by tensile experiments at room temperature. The yield point was used to 80%, making the safety factor until yield start 1.25.

The static basic load rating also enables the permissible thrust load to be calculated:

Fa = Fa perm. = p • C0 (kN)

p = < / ~ 0.2 for rod ends K series high performance version stainless steel

Dynamic basic load ratings for rod ends are available on request.

立即询问
您的联系人：Daniel Fleuchaus +49 9345/670-143

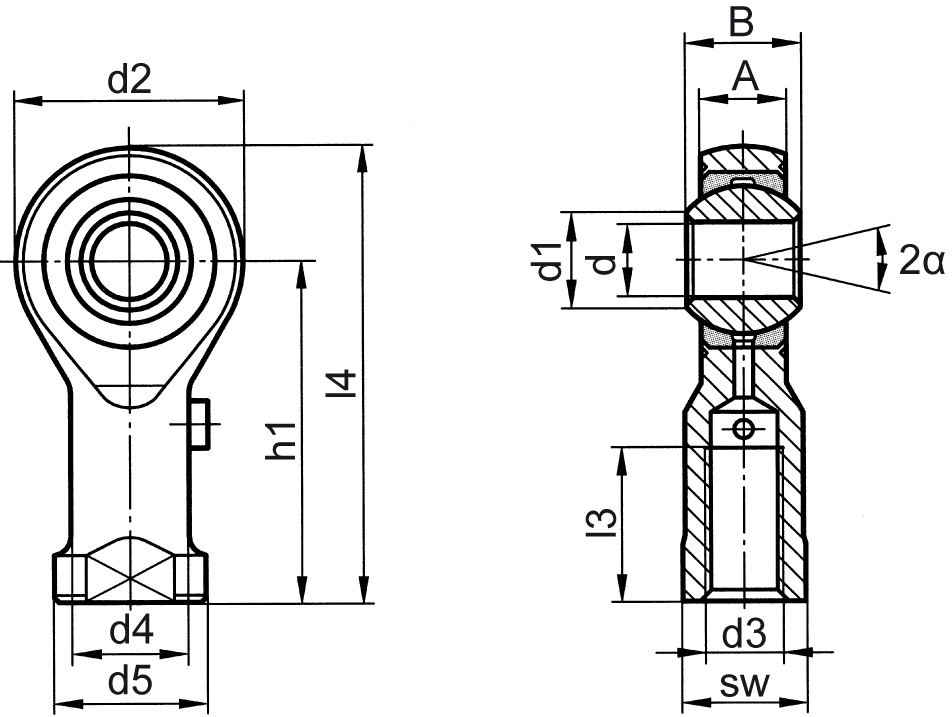

Rod ends DIN ISO 12240-4 (DIN 648) K series high performance version stainless steel female thread - Dimensional drawing
