Rod ends, rod end according to DIN ISO 12240-4 (DIN 648) K series from mbo Osswald, are on request deliverable with threaded bolt (rod end with threaded bolt, rod ends with threaded bolt). This high performance version is with female thread, high performance and material steel galvanised.

Rod ends DIN ISO 12240-4 (DIN 648) K series high performance version with threaded bolt female thread

can be regreased, suitable for higher rotation speeds

17 个评论 since 06.04.2026

Compact, precise, robust: integrated threaded bolt for repeatable assembly, female thread for a slim interference contour and cap-sealable connection. The high-performance version delivers high load ratings and strength; a defined lubrication regime ensures reproducible running characteristics – ideal for compact heavy-duty linkages.

描述

Rod end K series high performance version with threaded bolt female thread

Static basic load rating C0 (kN)

The static basic load rating C0 (see product details) denotes the value with which a rod end can in normal applications with a static load be stressed in the weakest cross-section without being permanently deformed. It represents the permissible radial bearing strain at rest. The basic load ratings quoted have been calculated using the respective material characteristic values and can be verified by tensile experiments at room temperature. The yield point was used to 80%, making the safety factor until yield start 1.25.

The static basic load rating also enables the permissible thrust load to be calculated:

Fa = Fa perm. = p • C0 (kN)

p = < / ~ 0.2 for rod ends K series high performance version with threaded bolt

Dynamic basic load ratings for rod ends are available on request.

立即询问
您的联系人：Daniel Fleuchaus +49 9345/670-143

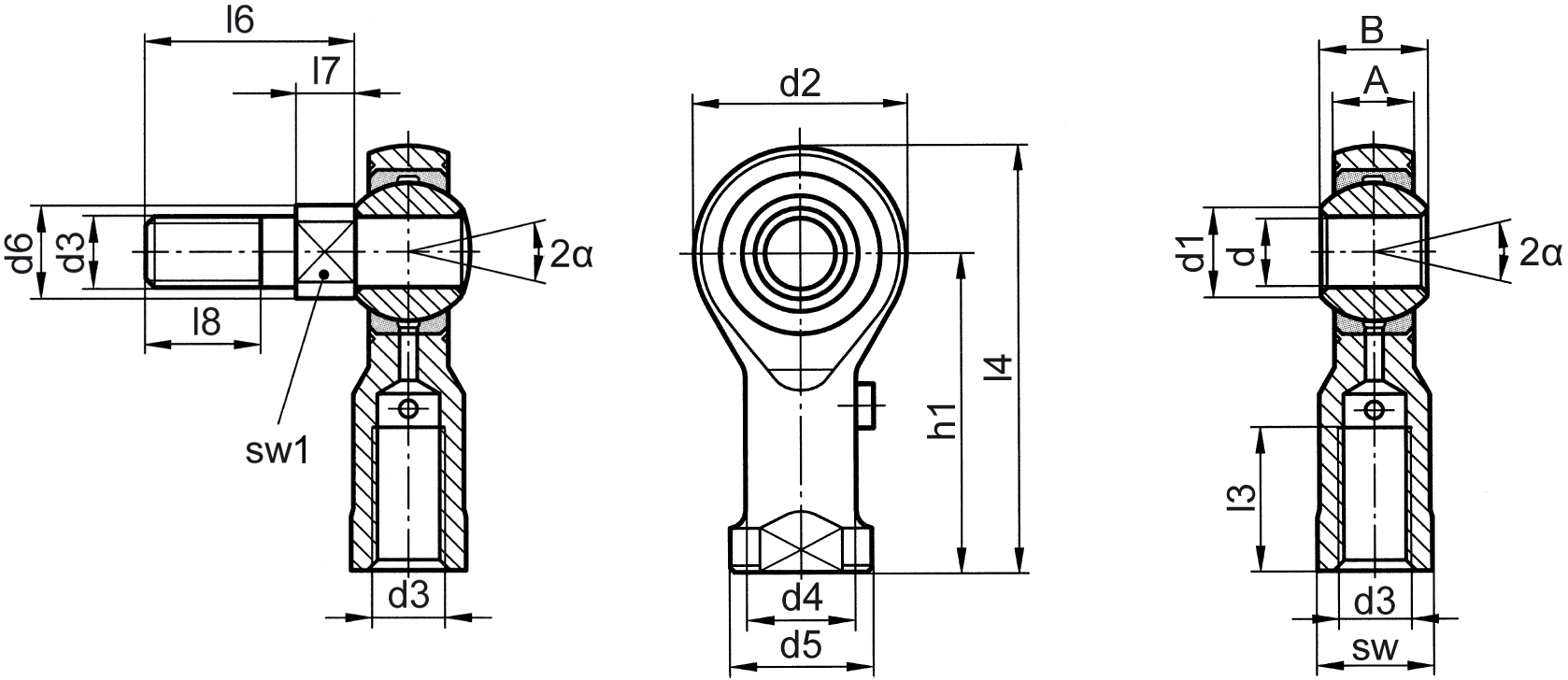

Rod ends DIN ISO 12240-4 (DIN 648) K series high performance version with threaded bolt female thread - Dimensional drawing
