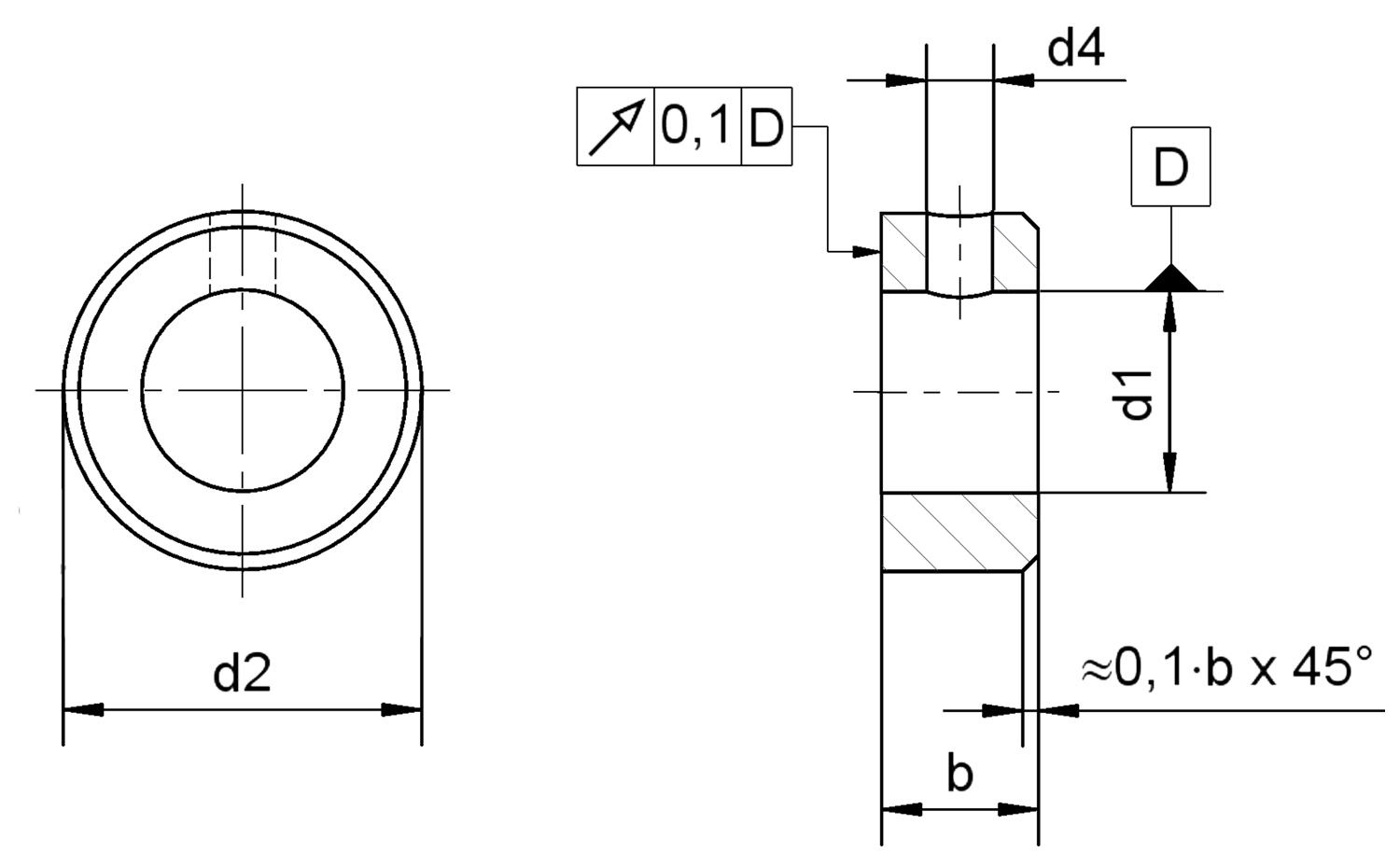

Set collars DIN 705 form B
203 个评论 since 01.05.2026
More support surface, better force distribution: DIN 705 form B set collars offer an adapted ring geometry for larger bearing surfaces. This reduces surface pressure and is gentler on the shaft – useful when higher forces need to be safely absorbed or specific installation space requirements must be met.
欲查找所需货品,您可任选不同筛选标准 ,或在表格顶部搜索文本或文本和货号 。
欲再次取消筛选器设置,请单击表格下方的“清空”按钮。
欲显示产品详细信息和 3D 模型,可单击与所需货品对应的行。
1 The specified tolerances only apply to the "untreated" version. Other tolerances must be specified when ordering.
2 The Row 1 nominal diameters should preferably be used above all for new designs.
3 The nominal diameters of row 2 contain sizes that are currently still needed in practice, but should no longer be used in new structures.
* Unlike grooved and taper pins, setscrews (up to M 10 with slot to DIN EN 27434 and above M 12 with internal hexagon to DIN EN ISO 4027) are an integral part of the set collar (screwed).
** Instead of grooved pins to DIN EN ISO 8744, it is also possible to use dowel pins to DIN EN ISO 8752 or spiral dowel pins to DIN EN ISO 8750.
*** If taper pins to DIN EN 22339 are used, the hole must be reamed during assembly with a 1:50 taper.
