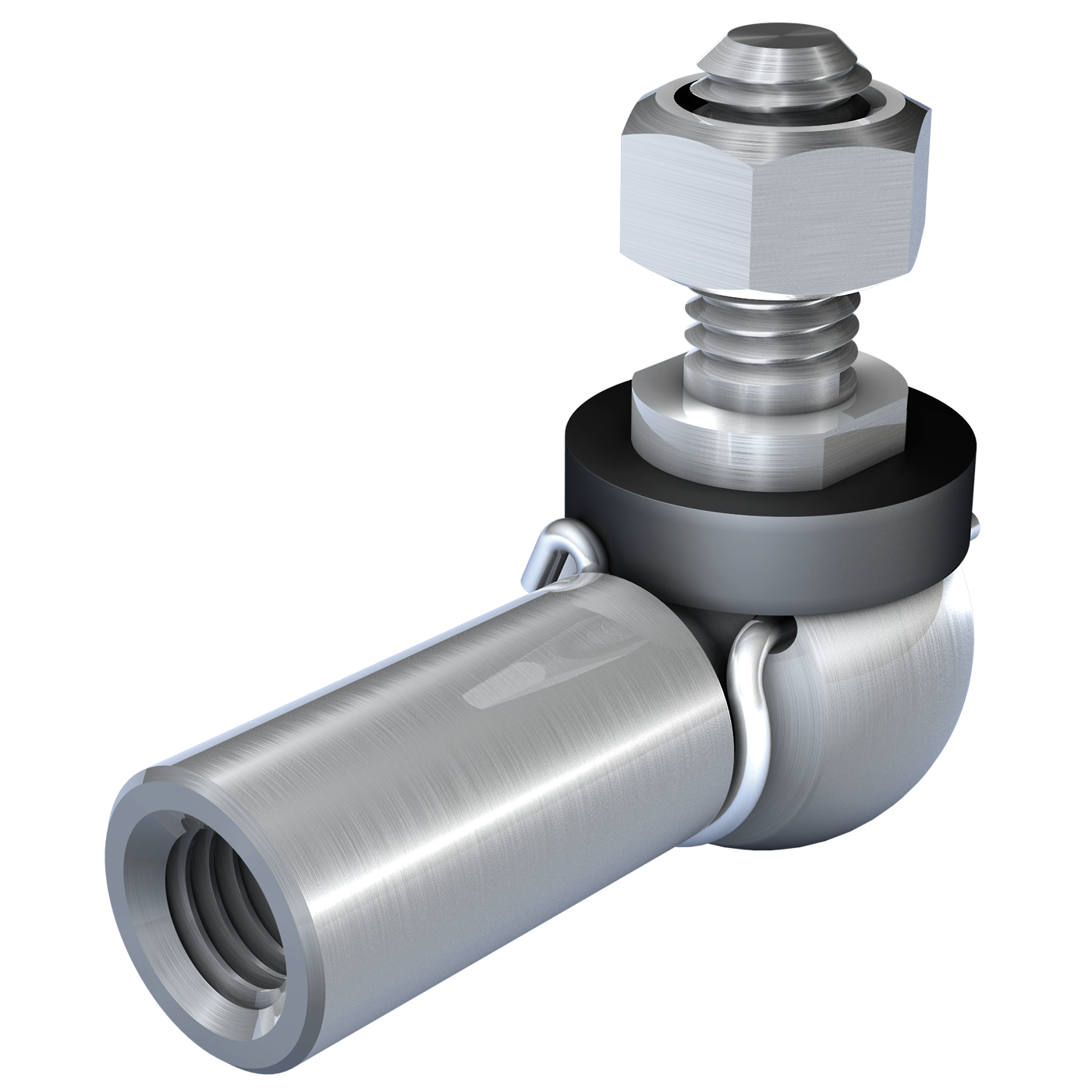

Angle joint similar to DIN 71802 with sealing cap CS 13 M8 Steel electr. galvanised white
hexagonal nut is supplied loose
* code for thread: regular thread = no code, regular thread left-handed (only in the ball socket) = LH, fine-pitch thread = FG
Angle joints in all standard versions (form B/BS and C/CS) and axial joints are available with sealing caps.
* code for thread: regular thread = no code, regular thread left-handed (only in the ball socket) = LH, fine-pitch thread = FG
Angle joints in all standard versions (form B/BS and C/CS) and axial joints are available with sealing caps.
货号
10 33 4413 8002/013
标识符
Angle joint similar to DIN 71802 form CS with sealing cap
Größe
CS 13 M8
材料组
钢
表面
白色电镀镀锌
d1
13
d1 Tolerance
H9/h9
d2*
M8 x 1,25
螺纹版
常规右螺纹
d3
13
l2 ±0,3
16,5
l3 ±0,3
13
a ±0,3
30
e min.
14
sw
11
Mass (kg) per piece
0,053
材料
Ball stud: steel, minimum tensile strength Rm = 600 N/mm²
Ball socket: steel, minimum tensile strength Rm = 500 N/mm²
Snap ring and circlip: stainless steel
Sealing cap: chloroprene (CR), must be usable in temperatures ranging from -30 °C to +110 °C (for short periods up to +140 °C)
