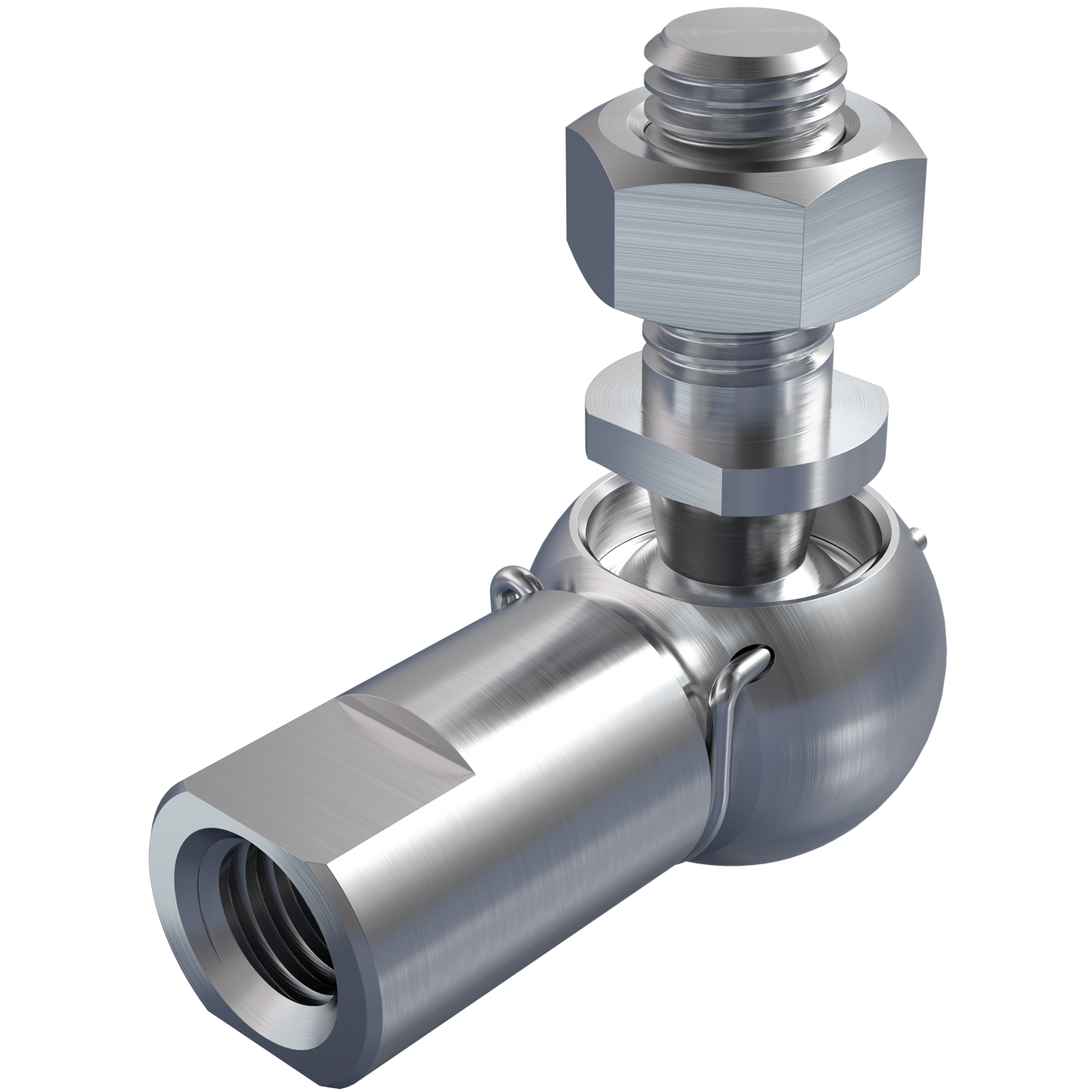

Angle joint similar to DIN 71802 with spanner surface CS 19 M16FG Steel bright
hexagonal nut is supplied loose
* code for thread: regular thread = no code, regular thread left-handed (only in the ball socket) = LH, fine-pitch thread = FG
* code for thread: regular thread = no code, regular thread left-handed (only in the ball socket) = LH, fine-pitch thread = FG
货号
16 03 4419 9162/003
标识符
Angle joint similar to DIN 71802 form CS with threaded stud and spanner surface at the socket
Größe
CS 19 M16FG
材料组
钢
表面
明亮
d1
19
d1 Tolerance
H9/h9
d2*
M16 x 1,5 FG
螺纹版
右细牙螺纹
d3
22
l2 ±0,3
28
l3 ±0,3
20
a ±0,3
45
e min.
21,5
sw
16
sw1
19
Mass (kg) per piece
0,221
材料
Ball stud: steel, minimum tensile strength Rm = 600 N/mm²
Ball socket: steel, minimum tensile strength Rm = 500 N/mm²
Snap ring and circlip: stainless steel
