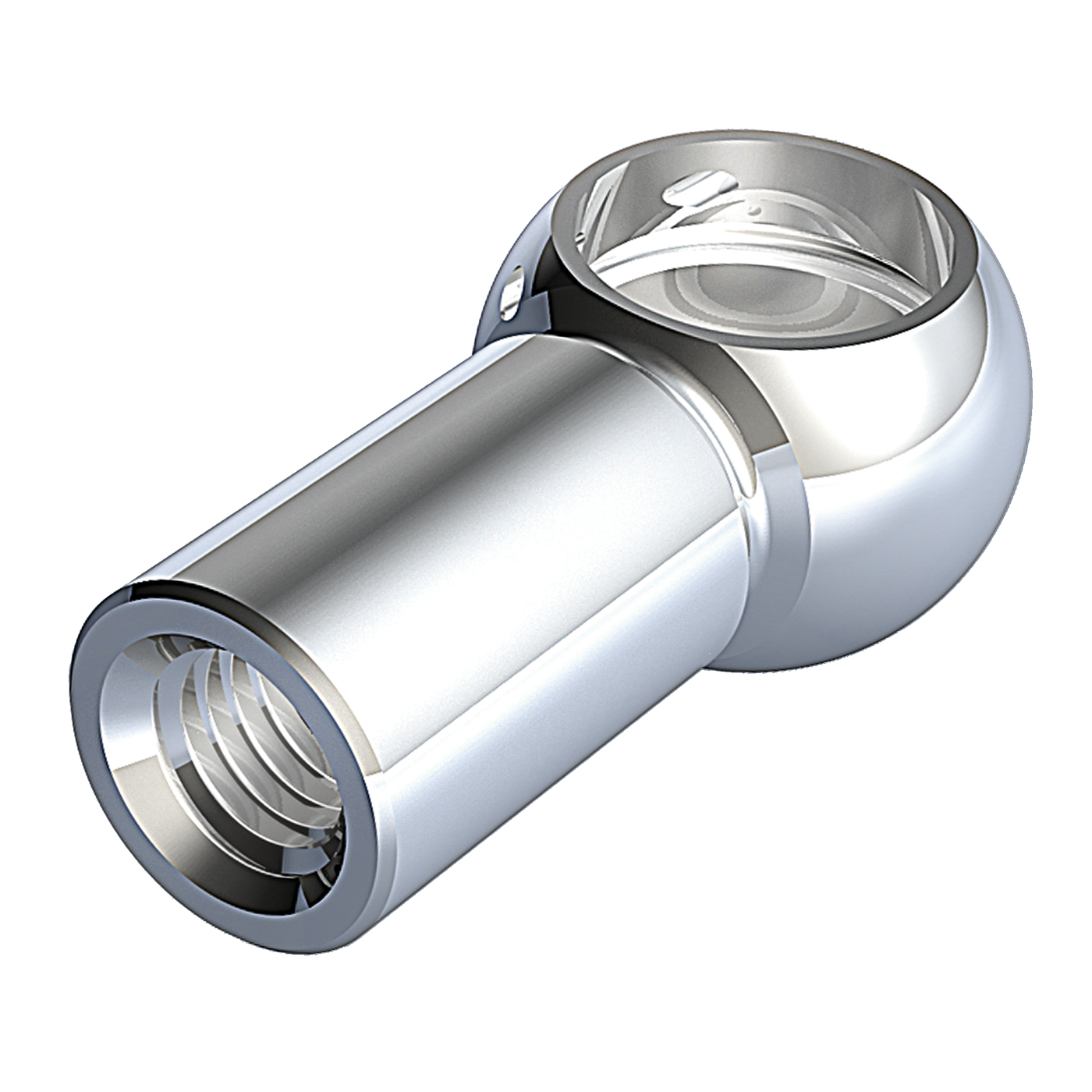

Ball socket DIN 71805 B 8 M5 Stainless steel A4 quality
with snap ring and groove for circlip
1 similar to DIN 71805
* code for thread: regular thread = no code, regular thread left-handed = LH, fine-pitch thread = FG
* code for thread: regular thread = no code, regular thread left-handed = LH, fine-pitch thread = FG
货号
10 03 0000 1008/4404
标识符
Ball socket DIN 71805 form B
Größe
B 8 M5
材料组
不锈钢 A4 质量
表面
明亮
d1
8
d1 Tolerance
H9
d2*
M5 x 0,8
螺纹版
常规右螺纹
d3
8
a ±0,3
22
e min.
10,2
Mass (kg) per piece
0,009
材料
Stainless steel 1.4404 (X2CrNiMo17-12-2)
Snap ring: stainless steel
